PF-41 FEEDER, 1HP 1PH 115V, 4 SPD

These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.

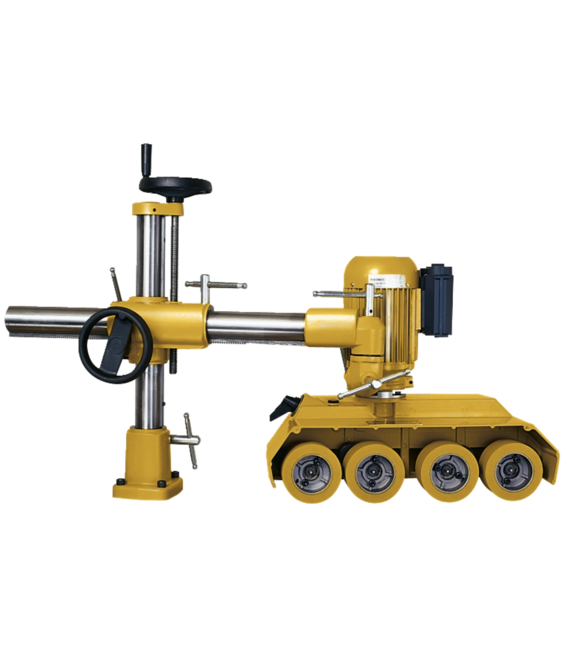

PF-41 Feeder, 1HP 1PH 115V, 4 Speed

Features & Benefits

  • Cast iron construction
  • Continuous duty motors transfer power from the gear box to the feed roller
  • Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
  • Roller chain and sprocket design provide positive feeding for all types of materials
  • Rollers can be changed out easily and quickly
  • Smart roller system allows for tire to be replaces with out replacing the assembly
  • Solid cast iron construction of body pieces and base
  • Support column is fully adjustable for horizontal, vertical or angled feeder position
  • Universal joints provide stability for vibration free feeding
SAP EAN Number Code (UPC)662755353772
Model NumberPF-41
SAP Base Unit of MeasureEA
SAP Commodity Code8466.30.6040
SAP Country of OriginTaiwan
Warranty5 Year
SAP Length43.23
SAP Unit of DimensionIN
SAP Height29.48
SAP Unit of DimensionIN
SAP Width23.58
SAP Unit of DimensionIN
SAP Gross Weight158
SAP Weight UnitLBS
SAP Net weight150
SAP Weight UnitLBS
SAP Transportation GroupLTL
End User SellableNo
Item Display Order5.0000
Maximum Height of Rollers Parallel to Tabletop (In.)8-1/2
Motor Phase1
Motor Power (HP)1
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Swing (Deg.)360
Whitepapers Asset Collection[1790812k_whitepaper_pdf]
Suggested Products1790800K,1790807K,1790810K,1790811K

Part #: 1790812K

Price: $1,699.99
