PM-2x2RK 2x2 CNC KIT W/RTR MOUNT (TEXT)
PM-2x2RK 2x2 CNC KIT W/RTR MOUNT (TEXT)PM-2x2RK 2x2 CNC KIT W/RTR MOUNT (TEXT)

For modern craftsmen who strive for perfection with each project, the Powermatic CNC line is the premium choice. The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location. The handheld controller attaches to the DSP control box via an 8-foot cable that makes it easy to oversee any project from a variety of positions. The included touch-off puck allows you to quickly and easily re-zero your Z-axis with the push of a button on your controller. The unparalleled design of these machines will give you the confidence, flexibility and durability needed to make even your biggest dream project a reality.

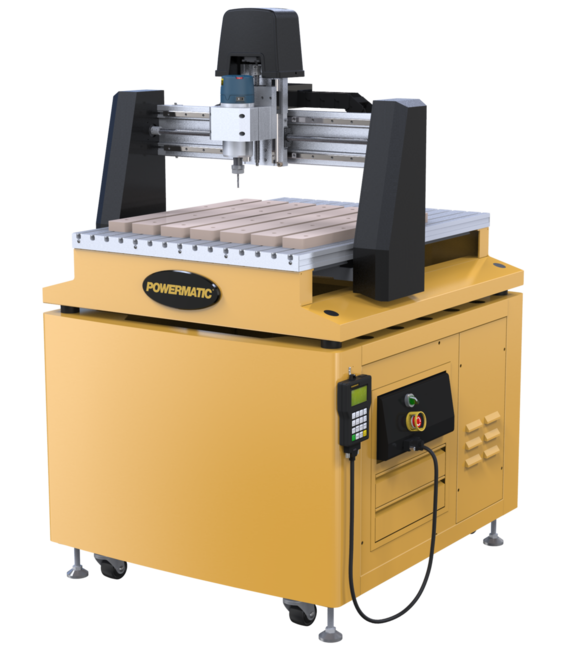

PM-2x2RK CNC Kit with Router Mount

Features & Benefits

  • Enclosed cabinet is heavy-duty welded steel and includes a handy toolbox for storage
  • Exclusive gravity cast aluminum gantry supports provide greater stability of the spindle
  • Flexible nylon track chains protect all cables preventing rubbing and stress
  • High-torque stepper motors control each axis, providing fast, quiet and precise movement
  • Included dust shoe provides a clean surface as the machine works when hooked up to a dust collector
  • Integrated casters provide mobility, while independent leveling feet provide stability
  • Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit
  • Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement
  • Universal 3-1/2" router mount (router not included)
  • MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program
SAP EAN Number Code (UPC)731325489248
SAP Base Unit of MeasureEA
SAP Commodity Code8465.92.0055
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length42
SAP Unit of DimensionIN
SAP Height33
SAP Unit of DimensionIN
SAP Width38.5
SAP Unit of DimensionIN
SAP Gross Weight600
SAP Weight UnitKG
SAP Net weight598
SAP Weight UnitKG
SAP Transportation GroupLTL
Accessories Products1797000,1797001,1797003,1797004,1797005,1797006
CNC Software URL/us/en/service-and-support/products/software-hub/
Dust Collection Minimum CFM Required (CFM)300
Easy2 URLhttp://content.jettools.com/assets/3D/Animation-Router_VR.html
End User SellableYes
Item Display Order10.0000
Motor Phase1
Motor Power (HP)3
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Rapid Feed Rate (IPM)200
Recommended Circuit Size (Amps.)15
Weight (Lbs.)598.0000
Weight (Lbs.) (Unit)Pound
X-Axis Travel (In.)24
Y-Axis Travel (In.)24
Z-Axis Travel (In.)6
Suggested Products1797000,1797001,1797003,1797004,1797005,1797006

Part #: 1797022K

Price: $7,899.99
