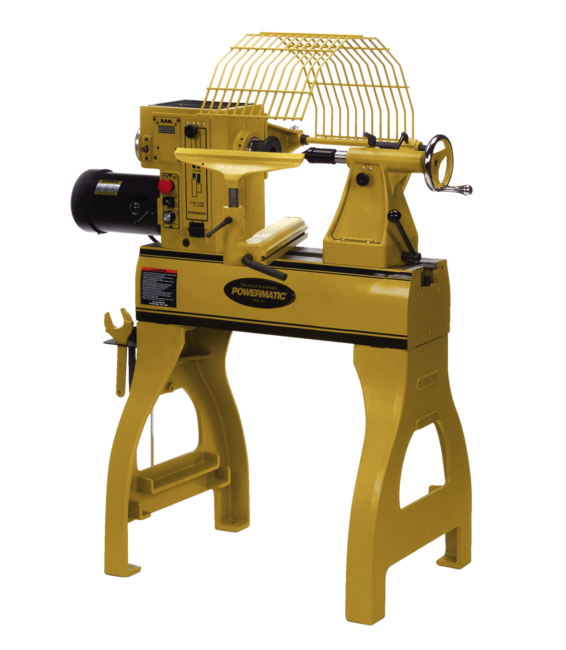

PM2020 SHORT BED LATHE, 2HP 1/3PH 230V

2020B Lathe, 2HP, 1 or 3PH, 220V

The features you love on the 3520B lathe are now available in a smaller footprint. The PM2020 lathe is perfect for turners short on space, or projects where a short bed is convenient. Like its big brother, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.

Features & Benefits

  • Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
  • Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
  • Set of dead centers which hold a spindle for visual comparison
  • Redesigned tool rest geometry allows for better chisel movement along the tool rest
  • Laser etched quill is self-ejecting.
  • Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
  • Attached tool caddy allows convenient access to centers, wrenches, etc.
  • Tailstock has internal storage for additional accessories
  • Chrome trimmed handwheels are ergonomic for a comfortable feel
  • Standard Equipment:
UPC731325352597
SAP Material Group100I
SAP Material TypeZFIN
SAP Warranty5 Year
Model NumberPM2020
SAP OwnerMWW
SAP Country of OriginTW
SAP Product CategoryWW
SAP Rounding ProfileNA
SAP Height31.000
SAP Length40.000
SAP Volume19.375
SAP Width27.000
Prop 65Cancer and Reproductive Harm
Motor Phase3
Speed Range50-3200
Spindle Threads (In. x TPI)1-1/4 x 8
Centerline of Spindle to Floor (In.)44 (adjustable)
Spindle Bore5/8
Headstock MovementFull Length of Bed
Wiring RemarksVFD will accept 1 or 3 phase power
Spindle TaperMT-2
Number of Indexing Positions48
Swing Over Tool Rest Base (In.)17
Motor Power (HP)2
Outboard Turning88
Distance Between Centers (In.)20
Motor Current (Amps)6.2
Spindle SpeedsHigh 125-3200/Low 50-1200
Ram Travel Quill Travel4-1/2
Bed ConstructionCast Iron
Recommended Circuit Size (Amps.)20
Quill TaperMT-2
Tailstock Bore3/8
Outboard External Threads (In. x TPI)1-3/16-18 UNC
Swing Over Bed (In.)20
Motor Voltage (V.)230 only
Bed Gap (In.)2-1/2

Part #: 1792020

Price: $3,699.99
