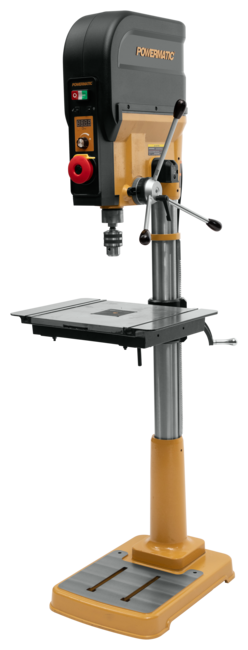

PM2820EVS Drill Press
PM2820EVS Drill PressPM2820EVS Drill PressPM2820EVS Drill Press
PM2820EVS Drill PressPM2820EVS Drill PressPM2820EVS Drill Press
PM2820EVS Drill PressPM2820EVS Drill PressPM2820EVS Drill Press
PM2820EVS Drill PressPM2820EVS Drill PressPM2820EVS Drill Press

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45 degree rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability.Integrated LED light reduces shadows for project visibility.

PM2820EVS Drill Press, 1HP 1PH 120V

Features & Benefits

  • Designed for a range of materials and applications
  • For unbeatable accuracy, the laser cross hairs provide precise tool point indication.
  • Gear driven power transfers torque consistently and efficiently for a wide range of materials.
  • Handles can be reversed for left or right sided operation.
  • Highly visible digital readout gives users control.
  • Includes Powermatics patented integrated depth stop for efficient drilling
  • Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.
  • Standing on an oversized cast base for outstanding stability for the 20 inch swing.
  • The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 870 RPM and the high speed setting ranges 600 3600 RPM.
  • The large cast table adjusts to a range of positions and tilts to a full ninety degree position.
SAP EAN Number Code (UPC)731325833836
Model NumberPM2820
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0055
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length55.51
SAP Unit of DimensionIN
SAP Height19.69
SAP Unit of DimensionIN
SAP Width30.9
SAP Unit of DimensionIN
SAP Gross Weight412.6
SAP Weight UnitLBS
SAP Net weight336.6
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products1792821,1792822,1792824,1792825
Base Size (In.)22-3/4 x 16-3/8 x 2-3/4
Chuck Distance to Base (In.)41-1/4
Chuck Distance to Table (In.)19-1/4
Chuck Size (In.)5/8
Column Diameter (In.)3-3/8
End User SellableNo
Fence Size (L x H) (In.)19-3/4 x 2-5/8
Item Display Order1.0000
Motor PhaseSingle
Motor Power (HP)1
Motor Voltage (V.)120
Number of Spindle Speeds2 Variable
Package NamePowermatic PM2820EVS Drill Press
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Spindle Distance to Base (In.)45
Spindle Distance to Table (Max.) (In.)23
Spindle Speed (RPM)150 - 3600
Spindle TaperMT2
Spindle Travel (In.)6
Style (Type)Floor
Swing (In.)20
Table Size Fully Extended (L x W) (In.)20-1/2 x 15-1/2
Table Size (L x W) (In.)20-1/2 x 15-1/2
Table Tilt (Deg.)90 L/R

Part #: 1792820

Price: $2,799.99
