PM3000B, 7.5HP 3PH 230/460V, 50" RIP

Table Saws

<< Back

PM3000B, 7.5HP 3PH 230/460V, 50" RIP
PM3000B, 7.5HP 3PH 230/460V, 50" RIPPM3000B, 7.5HP 3PH 230/460V, 50" RIPPM3000B, 7.5HP 3PH 230/460V, 50" RIP
PM3000B, 7.5HP 3PH 230/460V, 50" RIPPM3000B, 7.5HP 3PH 230/460V, 50" RIP

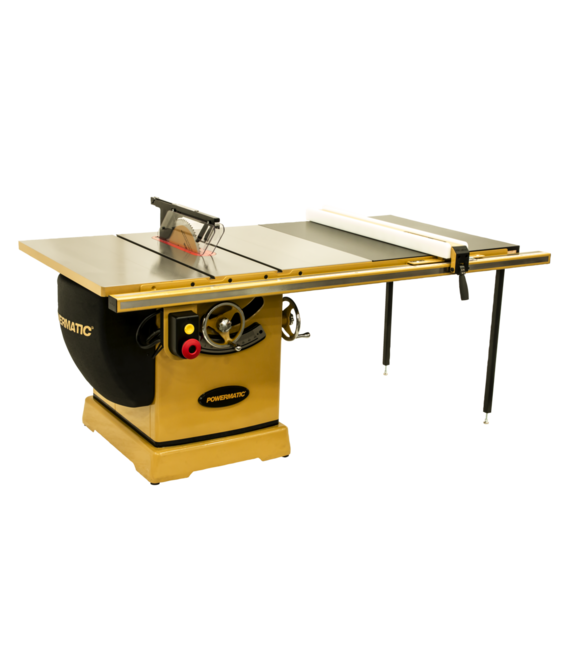

The PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A newly designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.

3000B table saw - 7.5HP 3PH 230/460v 50" RIP with Accu-Fence

Features & Benefits

  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Adjustable miter gauge
  • Arbor lock for rapid blade change
  • Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
  • Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
  • Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
  • One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
  • Poly-V drive belt system delivers efficient, quiet operation
  • Push-button arbor lock for rapid blade change
  • Quick-release riving knife lever for hassle-free riving knife changes
SAP EAN Number Code (UPC)731325712360
Model NumberPM3000B
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0036
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length48
SAP Unit of DimensionIN
SAP Height42.875
SAP Unit of DimensionIN
SAP Width38
SAP Unit of DimensionIN
SAP Gross Weight830.5
SAP Weight UnitLBS
SAP Net weight737.8
SAP Weight UnitLBS
SAP Transportation GroupLTL
Arbor Diameter (In.)1
Arbor Speed (RPM)4500
Blade Diameter (In.)14
Dust Collection Minimum CFM Required (CFM)600
Dust Port Outside Diameter (In.)4
End User SellableNo
Item Display Order17.0000
Maximum Depth of Cut at 45 Degrees (In.)3-1/2
Maximum Diameter of Dado (In.)8
Maximum Rip Left of Blade (In.)14
Maximum Rip Right of Blade (In.)50
Maximum Width of Dado (In.)13/16
Motor Phase3
Motor Power (HP)7.5
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)30
Style (Type)Cabinet
Table TypeCast Iron

Part #: PM375350K

Price: $6,799.99
Quantity:
