PWBS-14CS BNDSW, 1.5HP 1PH 115/230V

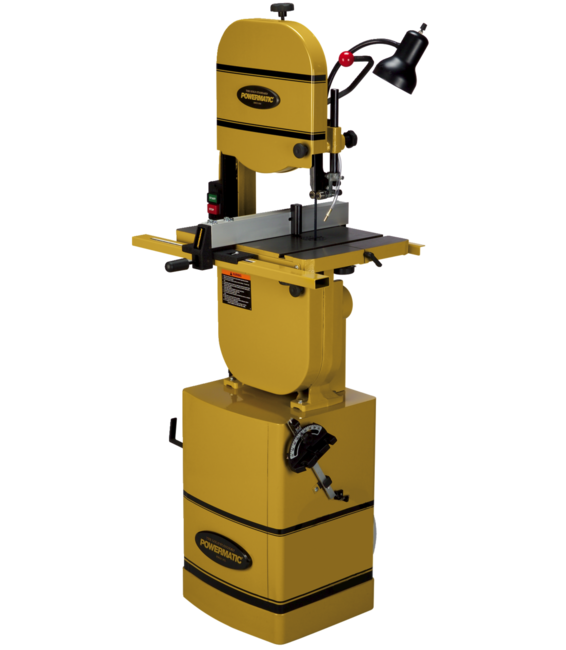

PWBS-14CS Bandsaw, 1.5HP 1PH 115/230V

Features & Benefits

  • Extra-large, two piece cast iron table consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20"
  • Chip blower ensures a clean, visible cut line
  • Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
  • Exclusive design, quick-release precision T-square style rip fence with 4" resaw attachment
  • Precision balanced, nine spoke cast iron wheels reduce vibration
  • Easy to read tensioning gauge settings indicated in "blade width" increments
  • Full 6" Resaw capacity (12" with riser block) with 13-1/2" width capacity
  • 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
  • Rigid one-piece welded stand requires no assembly
SAP Material GroupWW016
SAP Material TypeZKIT
SAP Warranty5 Year
Model NumberPWBS-14CS
SAP Country of OriginTW
SAP Product CategoryWW
SAP Rounding ProfileNA
SAP Height68.000
SAP Length20.000
SAP Volume26.759
SAP Width34.000
Prop 65Cancer and Reproductive Harm
Prewired Voltage (V.)115
Motor Current (Amps)11/5.5
Motor Power (HP)1-1/2
Table Size with Extension (L x W)15 x 20-1/2
Table Height from Floor (In.)44
Table Tilt (Deg.)10 Left, 45 Right
Blade Speed (SFPM)3,000
Table Size (L x W) (In.)15 x 15
Style (Type)Bandsaw
Motor Voltage (V.)115/230
Motor Phase1
Blade Length (In.)93-1/2
Band Saw Size/Wheel Diameter (In.)14
Cutting Capacity Height (In.)6
Cutting Capacity Width (In.)13-1/2
Maximum Saw Blade Width (In.)3/4
Minimum Saw Blade Width (In.)1/8
Dust Port Outside Diameter (In.)4

Part #: 1791216K

Price: $1,299.99
