OES9138 SNDR, 3HP 3PH 230/460V

Horizontal/Vertical Edge Sanders

<< Back

OES9138 SNDR, 3HP 3PH 230/460V
OES9138 SNDR, 3HP 3PH 230/460VOES9138 SNDR, 3HP 3PH 230/460VOES9138 SNDR, 3HP 3PH 230/460V
OES9138 SNDR, 3HP 3PH 230/460VOES9138 SNDR, 3HP 3PH 230/460VOES9138 SNDR, 3HP 3PH 230/460V
OES9138 SNDR, 3HP 3PH 230/460VOES9138 SNDR, 3HP 3PH 230/460V

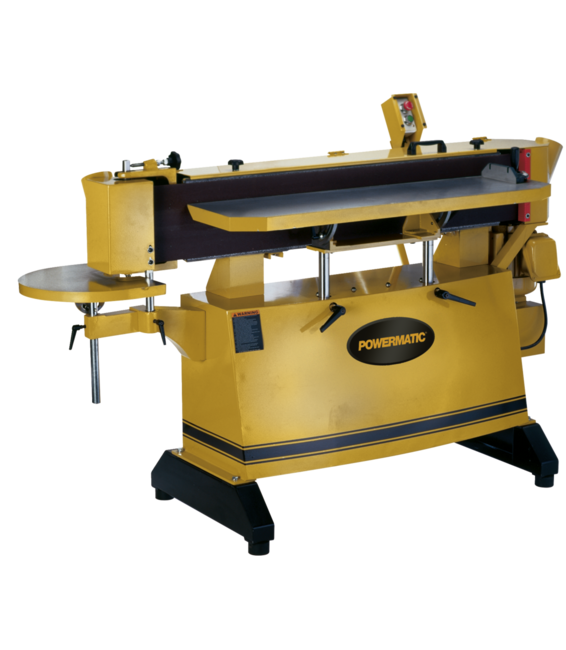

The large 11-3/4" x 48" table on the OES9138 oscillating edge sander travels a full 8" in vertical height to accommodate most woodworking pieces. It will also tilt negative 5 and out to positive 45. The cast iron platen is a generous 48" x 9-1/2" and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.

OES9138 Sander, 3HP 3PH 230/460V

Features & Benefits

  • Dual dust collection ports
  • Dual dust collection ports keep work area clean and extend abrasive belt life
  • Heavy-duty oscillating gearbox and shaft for long maintenance-free use
  • Hinged guard opens for infinite length sanding
  • Large 11-3/4" x 48" front worktable with 8" vertical travel and 45 tilt, includes miter head for angle work
  • Large radius end table has 6" vertical travel and 45 tilt for any angle and working height needed
  • Oscillates 24 cycles per minute for better finish and longer belt life
  • Precision balanced 9" diameter drive drum and 4" diameter rubber coated idler pulley for positive drive and rigid tracking
  • Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
  • Spring loaded, quick release lever makes belt changes quick and easy
SAP EAN Number Code (UPC)662755485572
Model NumberOES9138
SAP Base Unit of MeasureEA
SAP Commodity Code8465.93.0045
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight870
SAP Weight UnitLBS
SAP Net weight800
SAP Weight UnitLBS
SAP Transportation GroupLTL
Dust Collection Minimum CFM Required (CFM)1,100
Dust Port Outside Diameter (In.)4
End User SellableNo
Item Display Order2.0000
Motor Phase3
Motor Power (HP)3
Prop 65Cancer and Reproductive Harm
Suggested Products1791250,1791282

Part #: 1791293

Price: $6,599.99
