WB-25 SNDR, 15HP 3PH 230/460V (TEXT)

Wide Belt Sanders

<< Back

WB-25 SNDR, 15HP 3PH 230/460V (TEXT)
WB-25 SNDR, 15HP 3PH 230/460V (TEXT)WB-25 SNDR, 15HP 3PH 230/460V (TEXT)WB-25 SNDR, 15HP 3PH 230/460V (TEXT)
WB-25 SNDR, 15HP 3PH 230/460V (TEXT)WB-25 SNDR, 15HP 3PH 230/460V (TEXT)

The POWERMATIC 25" Wide Belt Sander delivers the utmost performance in measurement and sanding, creating a flawless finish every time. The Sander has centralized controls which allow the user to access all the needed buttons on one simple panel for more convenience. The variable speed feed belt allows the user to accurately dial in the exact feed speed to best suit each project and work environment. The sander also features a special digital readout control. This element is especially helpful because it will show the exact thickness of the finished piece or will allow the user to preset exactly what thickness they would prefer the finished piece to be. The sander also includes a unique measuring device, the auto thicknesser, that will capture the piece of wood to give the user an exact measurement of the starting thickness. The POWERMATIC 25" Wide Belt Sander has an air-eye system which controls the oscillation for the 25" x 75" sanding belt. This prevents the belt from running off the end of the drums and uses the sanding surface in a more uniform manner. This also ensures sanding lines will not be left on the work piece. The sander also has a powerful three motor system for maximum performance. The first motor system allows for maximum horsepower to feed the drive drums. A second, smaller motor, directly powers the VS feed belt and a third, smaller motor, powers the feed table up and down to the desired thickness automatically and with ease. For safety, the WB-25 Sander has a disc brake, which slows the machine quickly and stops it instantly in the event of an emergency.

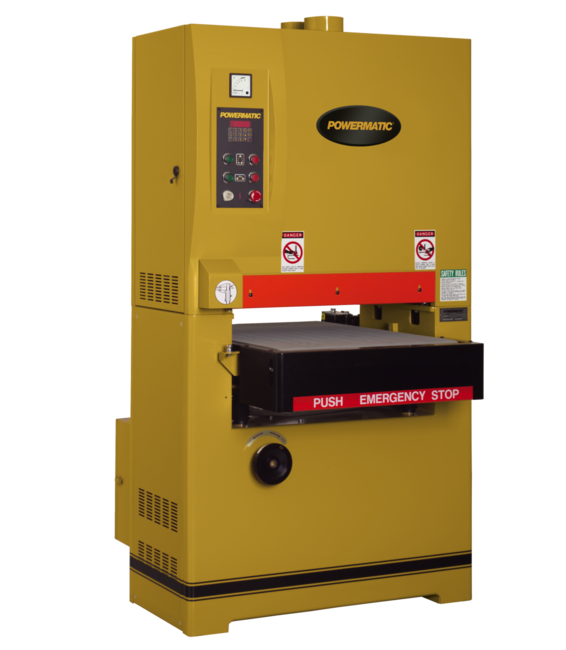

WB-25, 25" Sander, 15HP 3PH 230/460V with DRO

Features & Benefits

  • Centralized controls allow you to access all the needed buttons on one simple panel
  • Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
  • Includes 2 Sanding belts, 100 and 180 Grit
  • The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
  • Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
  • The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
  • The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement.
  • The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project
SAP EAN Number Code (UPC)662755878763
Model NumberWB-25
SAP Base Unit of MeasureEA
SAP Commodity Code8465.93.0065
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight1860
SAP Weight UnitLBS
SAP Net weight1760
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories ProductsWB25-812A,WB25-814A
Dust Collection Minimum CFM Required (CFM)800
End User SellableNo
Feed Motor Power (HP)1
Item Display Order3.0000
Minimum Board Length (In.)12
Minimum Board Thickness (In.)1/8
Motor Phase3
Motor Power (HP)15
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Sanding Belt Speed (FPM)2,625
Sell Sheets Asset Collection[1790825_ss_pdf],[1790825_ss_en_pdf]
Whitepapers Asset Collection[1790825_whitepaper_pdf],[1790825_wp_en_pdf]
Suggested Products1790837,1790843,1791250,1791251

Part #: 1790825

Price: $16,800.00
Quantity:
