JDP-17 17" DRILL PRESS, 3/4HP

Drill Presses

<< Back

JDP-17 17" DRILL PRESS, 3/4HP
JDP-17 17" DRILL PRESS, 3/4HPJDP-17 17" DRILL PRESS, 3/4HPJDP-17 17" DRILL PRESS, 3/4HP
JDP-17 17" DRILL PRESS, 3/4HPJDP-17 17" DRILL PRESS, 3/4HPJDP-17 17" DRILL PRESS, 3/4HP

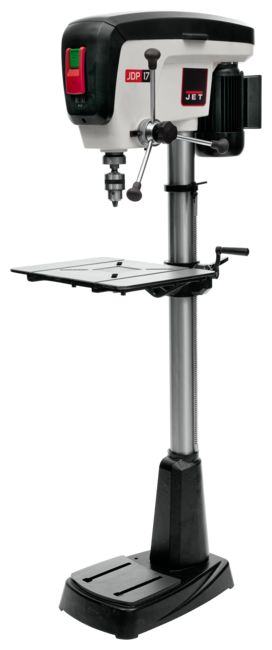

Introducing the new JET JDP-17, 17 Drill Press. From a full 5 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified.

17" Drill Press

Features & Benefits

  • Integrated depth stop makes repetitive drilling quick and easy
  • Large cast iron base provides stability
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
  • Replaceable MDF table insert
  • Table edge lip designed to make clamping easy
  • Xacta-X laser system easily identifies the drill center
SAP EAN Number Code (UPC)731325340013
Model NumberJDP-17
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0055
SAP Country of OriginChina
Warranty5 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight224
SAP Weight UnitLBS
SAP Net weight186
SAP Weight UnitLBS
SAP Transportation GroupLTL
Assembled Machine Dimensions (L x W x H) (In.) (English United States, Ecommerce)28-1/2 x 19 x 65
Chuck Distance to Base (In.)42-7/8
Chuck Distance to Table (In.)25-7/8
Chuck Size (In.)5/8
Column Diameter (In.)3-5/32
End User SellableNo
Item Display Order50.0000
Motor Power (HP)3/4
Number of Spindle Speeds16
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)15
Spindle Distance to Base (In.)46-1/2
Spindle Distance to Table (Max.) (In.)30
Spindle Travel (In.)5
Style (Type)Floorstanding Model
Swing (In.)16-7/8
Table Size (L x W) (In.)14 x 19
Weight (Lbs.)187.0000
Weight (Lbs.) (Unit)Pound

Part #: 716300

Price: $1,329.99
