JWBS-20-3, 20" BANDSAW 3HP, 1PH, 230V
JWBS-20-3, 20" BANDSAW 3HP, 1PH, 230VJWBS-20-3, 20" BANDSAW 3HP, 1PH, 230VJWBS-20-3, 20" BANDSAW 3HP, 1PH, 230V

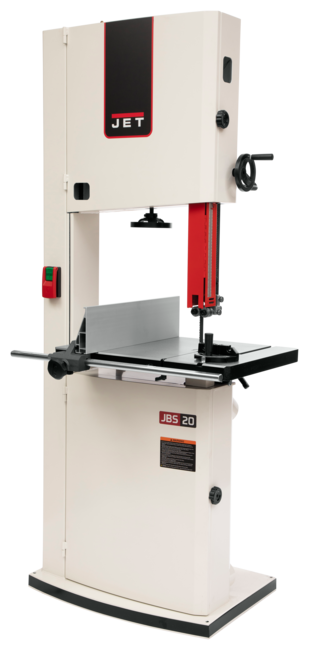

Designed to perform, the JET 20 bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted for front blade removal and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20 steel frame bandsaw is engineered to build great projects through superior performance.

JWBS-20-3, 20" Bandsaw, 3HP, 230V

Features & Benefits

  • Blade tracking window provides clear view of blade during tracking
  • Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy
  • Cast iron trunnion for maximum support and stability
  • Conveniently located dual 4" dust collection ports catch dust and chips at the source
  • Easy-to-read blade tension scale can be viewed through upper door window
  • Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Round table insert features leveling screws for precise adjustment
  • Single knob adjustment simplifies the blade tracking process
  • Table tilts 5 left and 45 right to accommodate a wide variety of cuts
SAP EAN Number Code (UPC)731325467505
Model NumberJWBS-20-3
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0068
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length32.6
SAP Unit of DimensionIN
SAP Height88.2
SAP Unit of DimensionIN
SAP Width26.2
SAP Unit of DimensionIN
SAP Gross Weight660
SAP Weight UnitLBS
SAP Net weight588
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products708119
Band Saw Size/Wheel Diameter (In.)20-1/4
Cutting Capacity Height (In.)16.0000
Cutting Capacity Height (In.) (Unit)Inch
Cutting Capacity Width (In.)20.0000
Dust Collection Minimum CFM Required (CFM)400
End User SellableNo
Item Display Order5.0000
Minimum Saw Blade Width (In.)1/8
Motor Amps12
Motor Power (HP)3
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)30
Table Height from Floor (In.)37
Table Size (L x W) (In.)27-1/4 x 20 x 1-5/8

Part #: 714800

Price: $3,899.99
