JWL-1640EVS LATHE 1.5HP, 115V


<< Back

JWL-1640EVS LATHE 1.5HP, 115V

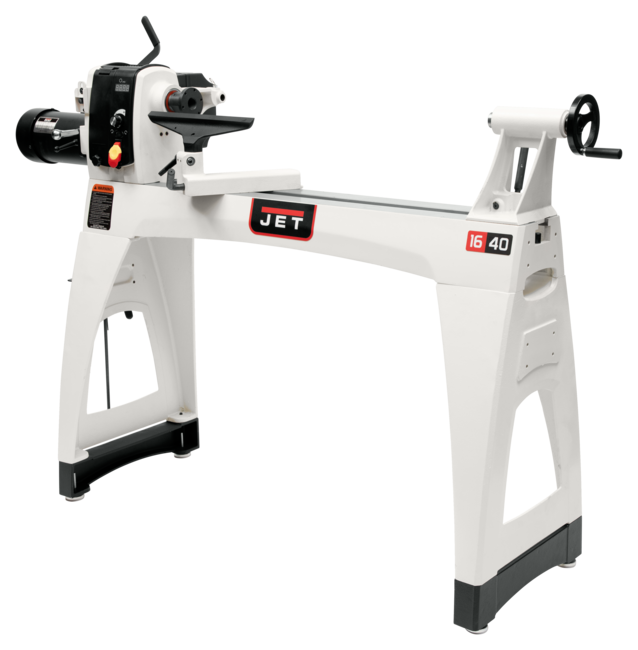

JWL-1640EVS 16" x 40" Wood Lathe

Features & Benefits

  • Headstock slides for maximum versatility
  • Extended spindle nose houses dual headstock spindle bearings
  • Improved tailstock quill locking mechanism incorporates an anti-rotation key
  • Tailstock features Acme threads for smooth and durable movement
  • Banjo uses non-marring, positive locking wedge system to securely hold tool post
  • Tool post locking mechanism designed for year of consistent strength
  • Spindle lock latch frees up both hands
  • 36 integrated indexing positions
  • Newly designed headstock locking handle accessible from front of lathe
SAP Material GroupWW070
SAP Material TypeZFIN
SAP Warranty5 Year
Model NumberJWL-1640EVS
SAP Division3
SAP Country of OriginTW
SAP Product CategoryWW
SAP Rounding ProfileNA
SAP Height28.000
SAP Length57.000
SAP Volume29.804
SAP Width31.000
Prop 65Cancer and Reproductive Harm
Motor Amps4.6
Distance Between Centers (In.)40
Quill Travel (In.)4-1/4
Prewired Voltage (V.)115 Input Only
Assembled Machine Dimensions (In.)73 x 52-1/2 x 20
Outboard TurningYes
Tailstock Bore (In.)3/8
Swing Over Bed (In.)16-1/2
Number of Indexing Positions36
Spindle Bore (In.)5/8
Motor Power (HP)1-1/2
Quill TaperMT2
Spindle Thread (In./TPI)1-1/4"/8 TPI
Motor Phase (PH)3
Spindle SpeedsHigh 120-3200/Low 40-1200
Centerline of Spindle to Floor (In.)44-1/2
Spindle TaperMT2
Headstock MovementSlide
Motor Voltage (V.)230
Speed Range40-3200
Swing Over Tool Rest Base (In.)12-7/8
Recommended Circuit Size (Amps.)20
Bed ConstructionCast Iron
Wiring Remarks115v input only
Outboard External Threads (In. x TPI)3/4-14 LH
Bed Gap (In.)1-3/4

Part #: 719500

Price: $2,299.99
