HAT9080 110T SHOP PRESS W PLC & PORTABLE POWER U

Shop Presses

<< Back

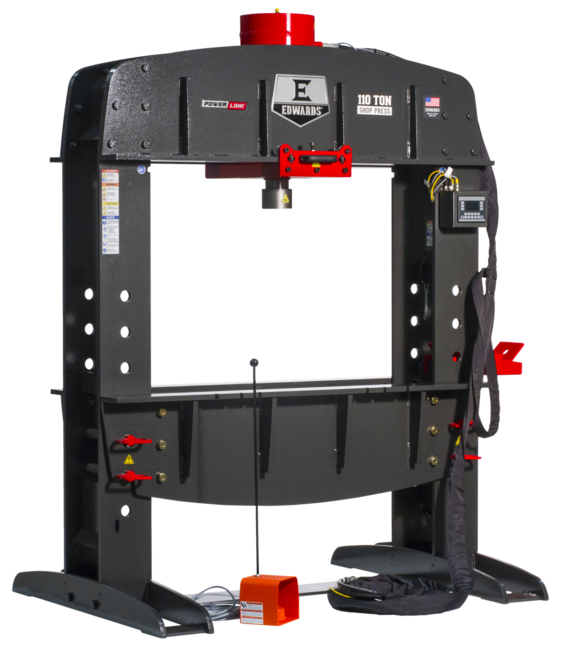

HAT9080 110T SHOP PRESS W PLC & PORTABLE POWER U
HAT9080 110T SHOP PRESS W PLC & PORTABLE POWER UHAT9080 110T SHOP PRESS W PLC & PORTABLE POWER UHAT9080 110T SHOP PRESS W PLC & PORTABLE POWER U
HAT9080 110T SHOP PRESS W PLC & PORTABLE POWER UHAT9080 110T SHOP PRESS W PLC & PORTABLE POWER UHAT9080 110T SHOP PRESS W PLC & PORTABLE POWER U

Our most powerful Shop Press, this 110 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With the greatest capacity this Shop Press is able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

110 Ton Shop Press with PLC and Portable Power Unit 460V, 3Ph

Features & Benefits

  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort
  • Open-sided design allows longer material to pass through the frame
  • Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Rolling cylinder provides maximum adaptability
SAP EAN Number Code (UPC)731325714357
Model NumberHAT9080
SAP Country of OriginUSA
Warranty1 Year
SAP Length72
SAP Height123
SAP Width112
SAP Gross Weight2200
SAP Net weight2200
Accessories ProductsPR135,PRB06-1,PRB110,PRB12,PRB18,PRB24,PRB32
End User SellableNo
Gross Weight (Lbs)2600.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order24.0000
Minimum Ram Speed (In./Sec).186
Minimum Return Speed (In./Sec).220
Net Weight (Lbs.)2600.0000
Net Weight (Lbs.) (Unit)Pound
Product Dimensions (In.)48 x 64 x 88
Prop 65Cancer and Reproductive Harm
Rating (Tons)110.0000
Rating (Tons) (Unit)Ton
Steel Frame Thickness (In.)3/4
Stroke (In.)12-1/4
Weight (Lbs.)3120.0000
Weight (Lbs.) (Unit)Pound
Work Table (In.)37-7/16 x 48

Part #: HAT9080

Price: $27,319.00
Quantity:
