100T IRONWORKER-3PH, 460V, POWERLINK SYS

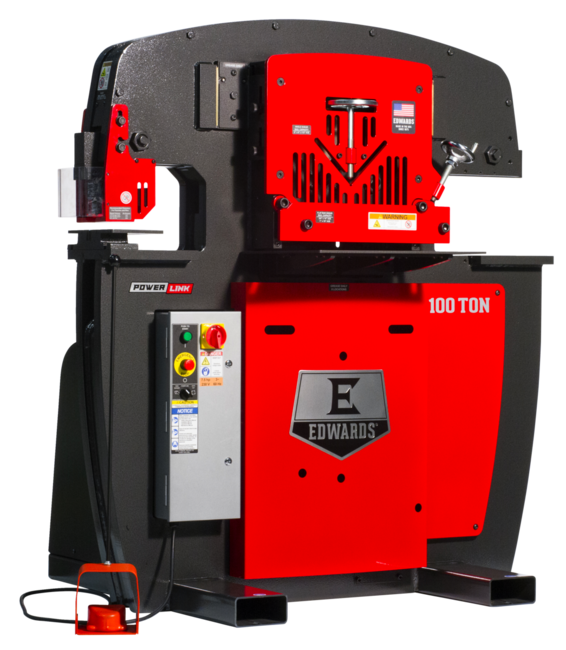

100 Ton Ironworker with PowerLink System

<< Back

100T IRONWORKER-3PH, 460V, POWERLINK SYS
100T IRONWORKER-3PH, 460V, POWERLINK SYS100T IRONWORKER-3PH, 460V, POWERLINK SYS100T IRONWORKER-3PH, 460V, POWERLINK SYS
100T IRONWORKER-3PH, 460V, POWERLINK SYS100T IRONWORKER-3PH, 460V, POWERLINK SYS100T IRONWORKER-3PH, 460V, POWERLINK SYS

Our 100 Ton Ironworker provides optimal power and adaptability to handle any project with its four workstations, 13 interchangeable attachments in the open workstation, and 17 accessories to adapt the Ironworker to your needs. Ideal for larger fabrication shops or those jobs requiring heavier materials, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.

100 Ton Ironworker 460V, 3Ph, with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Durable, heavy-duty Made in USA steel construction
  • Electric foot pedal with integrated jog control
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325555790
Model NumberIW100-3P460-AC600
SAP Country of OriginUSA
SAP Length46
SAP Height67
SAP Width69
SAP Gross Weight4650
SAP Net weight4557
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps11
Angle Shear Max Capacity 1/2"6 x 6
Angle Shear Max Capacity (In.)6 x 6 x 1/2
Angle Shear Work Height (In.)43-15/16
Coper Notcher Max Capacity (In.)2-1/2 x 6 x 1/2
Coper Notcher Work Height (In.)42
End User SellableNo
Flat Bar Shear Max Capacity 1"10
Flat Bar Shear Max Capacity 3/4"14
Flat Bar Shear Max Round Capacity (In.)1-1/4
Flat Bar Shear Max Round (In)1-1/4
Flat Bar Shear Max Square (In)1-1/4
Flat Bar Shear Work Height (In.)37
Hydraulics (GPM)10-1/2
Hydraulics (PSI)3500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)10-1/2
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order4.0000
Motor Amps11
Motor (HP)7.5 HP 3 ~ 460V
Motor Speed (RPM)1765
Open Workstation Throat Depth (In.)14-3/4
Open Workstation Work Height (In.)37
Package NameThe Edwards 100 Ton Ironworker, JAWS, Universal Open Tooling Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)56-1/8 x 45 x 61-11/16
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)8-3/4
Punch Shut Height (In)6-15/16
Rating (Tons)100.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)17
Valve Pressure (PSI)3500.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)4650.0000
Weight (Lbs.) (Unit)Pound

Part #: IW100-3P460-AC600

Price: $34,659.00
