120T IRONWORKER - 3PH, 575V

120 Ton Ironworker without PowerLink System

<< Back

120T IRONWORKER - 3PH, 575V
120T IRONWORKER - 3PH, 575V120T IRONWORKER - 3PH, 575V120T IRONWORKER - 3PH, 575V
120T IRONWORKER - 3PH, 575V120T IRONWORKER - 3PH, 575V120T IRONWORKER - 3PH, 575V

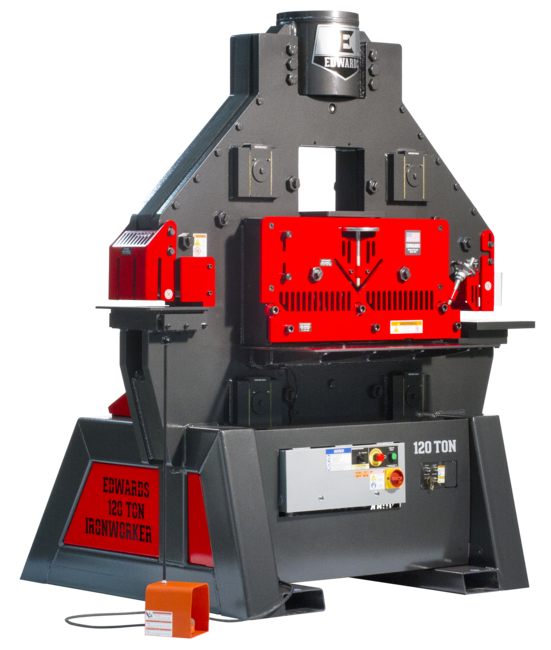

Our most powerful Ironworker, the 120 Ton offers the largest capacity and most flexibility for a durable and heavy-duty design made in the USA. The 5 Workstations include a Punch, Flat Bar Shear, Angle Shear, Coper Notcher, and Open Cavity that accepts 4 Attachments. This compact machine allows for fast and easy transitions between fabrication operations. Further customize the Ironworker to your projects with 12 interchangeable Attachments and 15 optional Accessories. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects.

120 Ton Ironworker 575V, 3Ph

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Electric foot pedal with integrated jog control
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325555998
Model NumberIW120-3P575
SAP Country of OriginUSA
SAP Length60
SAP Height87
SAP Width67
SAP Gross Weight5975
SAP Net weight5856
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps10
Angle Shear Max Capacity 1/2"6 x 6
Angle Shear Max Capacity (In.)6 x 6 x 1/2
Angle Shear Work Height (In.)52-1/2
Coper Notcher Max Capacity (In.)3 x 6 x 1/2
Coper Notcher Work Height (In.)40
End User SellableNo
Flat Bar Shear Max Capacity 1"12
Flat Bar Shear Max Capacity 1/2"24
Flat Bar Shear Max Round Capacity (In.)1-1/4
Flat Bar Shear Max Round (In)1-1/4
Flat Bar Shear Max Square (In)1-1/4
Flat Bar Shear Work Height (In.)33-1/4
Hydraulics (GPM)24
Hydraulics (PSI)3800.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)24
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order6.0000
Motor Amps10
Motor (HP)10 HP 3 ~ 575V
Motor Speed (RPM)1770
Package NameThe Edwards 120 Ton Ironworker, JAWS, Universal Open Tooling Station
Product Dimensions (In.)60 x 60 x 84
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)9-1/8
Punch Shut Height (In)7-1/8
Rating (Tons)120.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)17
Valve Pressure (PSI)3800.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)5500.0000
Weight (Lbs.) (Unit)Pound

Part #: IW120-3P575

Price: $44,809.00
