50T IRONWORKER-3PH, 460V, POWERLINK SYS

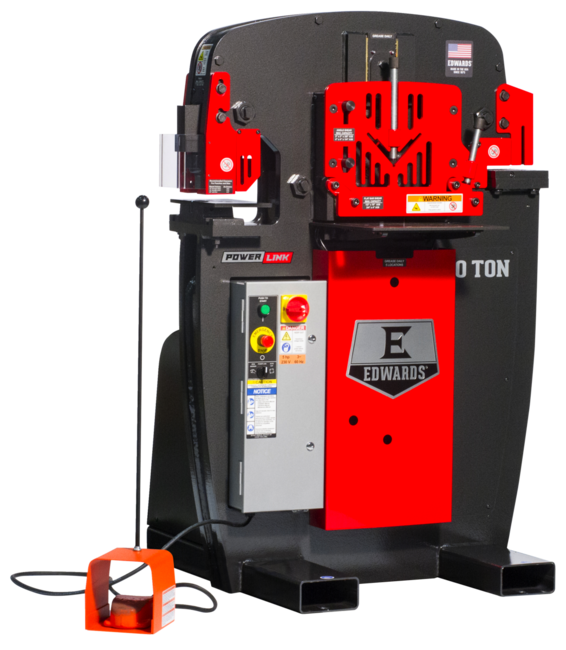

50 Ton Ironworker with PowerLink System

<< Back

50T IRONWORKER-3PH, 460V, POWERLINK SYS
50T IRONWORKER-3PH, 460V, POWERLINK SYS50T IRONWORKER-3PH, 460V, POWERLINK SYS50T IRONWORKER-3PH, 460V, POWERLINK SYS
50T IRONWORKER-3PH, 460V, POWERLINK SYS50T IRONWORKER-3PH, 460V, POWERLINK SYS50T IRONWORKER-3PH, 460V, POWERLINK SYS

Ideal for a small to medium workshop that needs greater capacity, the 50 Ton Ironworker has 4 Workstations including a Punch, Flat Bar Shear, Angle Shear and a dedicated factory-installed Coper Notcher. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. In addition, the PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Accepting 9 Attachments and 16 Accessories, this compact machine can tackle any project you throw at it.

50 Ton Ironworker 460V, 3Ph with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
  • ANSI B11.5-1988(02) Compliant Guarding
  • Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine
  • Durable, heavy-duty Made in USA steel construction
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325556261
Model NumberIW50-3P460-AC500
SAP Country of OriginUSA
SAP Length45
SAP Height62
SAP Width51
SAP Gross Weight2020
SAP Net weight1980
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps7
Angle Shear Max Capacity 1/4"4 x 4
Angle Shear Work Height (In.)39-7/8
Coper Notcher Max Capacity (In.)2 x 3 x 5/16
Coper Notcher Work Height (In.)39-1/2
End User SellableNo
Flat Bar Shear Max Capacity 1/2"10
Flat Bar Shear Max Capacity 3/4"4
Flat Bar Shear Max Round (In)3/4
Flat Bar Shear Max Square (In)3/4
Flat Bar Shear Work Height (In.)34-1/2
Hydraulics (GPM)3-1/2
Hydraulics (PSI)2500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)3-1/2
Item Display Order5.0000
Motor Amps7
Motor (HP)5 HP 3 ~ 460V
Motor Speed (RPM)1725
Package NameThe Edwards 50 Ton Ironworker, JAWS, Dedicated Coper Notcher Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)36-3/4 x 36-1/8 x 54-1/2
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)8-1/8
Punch Shut Height (In)6-1/4
Punch Throat Depth (In.)7
Punch Work Height (In.)36-9/16
Rating (Tons)50.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)7
Valve Pressure (PSI)2750.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)2020.0000
Weight (Lbs.) (Unit)Pound

Part #: IW50-3P460-AC500

Price: $16,479.00
Quantity:
