ELITE 110/65 DUAL OPERATOR IW 3PH, 230V
ELITE 110/65 DUAL OPERATOR IW 3PH, 230VELITE 110/65 DUAL OPERATOR IW 3PH, 230VELITE 110/65 DUAL OPERATOR IW 3PH, 230V
ELITE 110/65 DUAL OPERATOR IW 3PH, 230VELITE 110/65 DUAL OPERATOR IW 3PH, 230VELITE 110/65 DUAL OPERATOR IW 3PH, 230V

Designed for simultaneous use by two operators, the ELITE 110/65 Ton Ironworker contains two independent power plants. This machine includes 5 Workstations: a punch station with oversized throat depth, a 24" wide flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 optional Attachments. ELITE Ironworkers have premium features integrated into their design to maximize efficiency and increase productivity. The Hydraulic Hold-Down, Roller Encoder Measuring System, Swing-Away Stripper Assembly and Quick Change Punch Assembly are designed to increase accuracy and save time on this production machine. The nickel-plated Premium Gauging Tables provide a large work area and add precision, speed and repeatability to your punch projects. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. The standard PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.

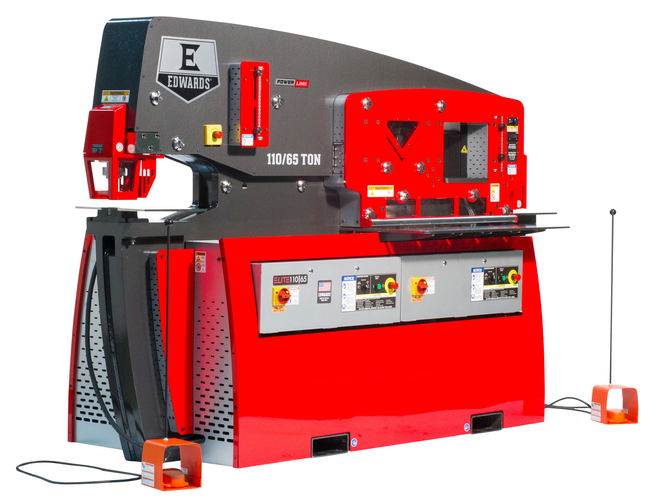

ELITE 110/65 Ton Ironworker 230V, 3Ph, with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Central Lubrication System simplifies Ironworker maintenance
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out system with multiple location E-Stops (foot pedal, control panel & Punch workstation) for added safety
  • Two independent power plants produce true Dual Operation
SAP EAN Number Code (UPC)731325562958
Model NumberELT11065-3P230
SAP Country of OriginUSA
SAP Length48
SAP Height72
SAP Width96
SAP Gross Weight8580
SAP Net weight8580
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps22
Angle Shear Max Capacity 3/8"5 x 5
Angle Shear Max Capacity (In.)5 x 5 x 3/8
Angle Shear Work Height (In.)44
Coper Notcher Max Capacity (In.)2-1/2 x 6 x 3/8
Coper Notcher Work Height (In.)35-5/8
End User SellableNo
Flat Bar Shear Max Capacity 1"4
Flat Bar Shear Max Capacity 1/2"14
Flat Bar Shear Max Capacity 3/8"24
Flat Bar Shear Max Round Capacity (In.)1
Flat Bar Shear Max Round (In)1
Flat Bar Shear Max Square (In)1
Flat Bar Shear Rating (Tons)65
Flat Bar Shear Work Height (In.)33-1/2
Hydraulics (GPM)10-1/2
Hydraulics (PSI)3000.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)10-1/2
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order3.0000
Motor Amps22
Motor (HP)7.5 HP 3 ~ 230V
Motor Speed (RPM)1765
Package NameThe Edwards ELITE 110/65 Ton Ironworker, Dual Operator, ELITE, Universal Open Tooling Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)61-9/16 x 44-7/8 x 65-1/8
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)9-3/4
Punch Shut Height (In)6-9/16
Reservoir (Gal.)17
Valve Pressure (PSI)3000.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)8580.0000
Weight (Lbs.) (Unit)Pound

Part #: ELT11065-3P230

Price: $59,409.00
