IDP-17, 17" INDUSTRIAL DRILL PRESS

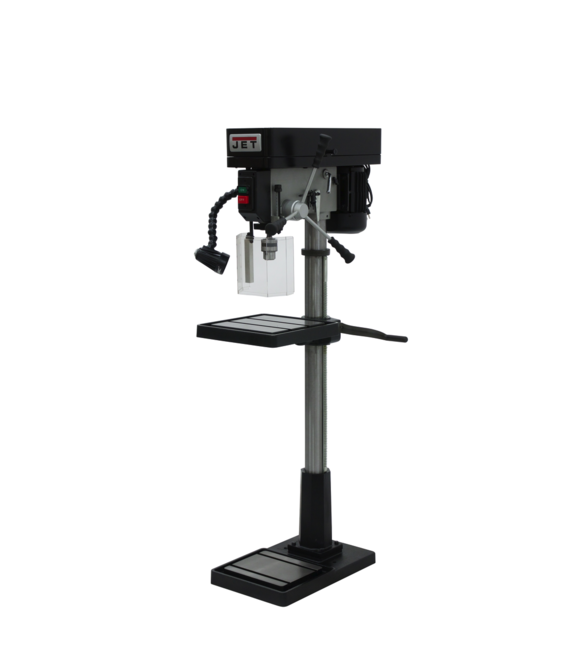

IDP-17, 17" Industrial Floor Model Drill Press

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Features & Benefits

  • For added Safety, the IDP-17, 17" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
  • Spindle is supported by high quality ball bearings
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Large Hand Grips designed with the users comfort in mind
  • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • On/off switch located on front of the drill press head
  • Heavy Duty construction
UPC731325466737
SAP Material GroupMW105
SAP Material TypeZFIN
SAP Warranty2 Year
Model NumberIDP-17
SAP OwnerJMW
SAP Country of OriginTW
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height0.000
SAP Length0.000
SAP Volume0.000
SAP Width0.000
Prop 65Cancer and Reproductive Harm
Table Size (L x W) (In.)14 x 14
Column Diameter (In.)3-1/8
Spindle Distance to Table (Max.) (In.)30-1/2
Base Dimensions (In.)21-3/4 x 13-3/4 x 2-3/16
Drilling Capacity Mild Steel (In.)5/8
Spindle Travel (In.)3-5/16
Base Work Table (In.)16-15/16 x 10-13/16
Weight (Lbs.)276
Distance Column to Spindle (In.)8-3/8
Drills to Center of Circle (in)17
Range of Spindle Speeds (RPM)350 - 2,800
Spindle Distance to Base (In.)50
T-Slot Centers (In.)9/16
Motor (HP)1 HP, 115/230V, 1Ph
Base Slots Number & Size (In.)2 and 1/2
Drilling Capacity Cast Iron (In.)3/4
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)27-1/2 x 15-3/4 x 63
Spindle Taper (In. x TPI)MT-2
Style (Type)Belt Drive
T-Slots Number and Size (In.)2 and 1/2
Quill Diameter (In.)2-1/16
Chuck Size (In.)5/8

Part #: 354300

Price: $1,599.00
