IDP-22, 22" INDUSTRIAL DRILL PRESS

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize cast iron tables and base and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

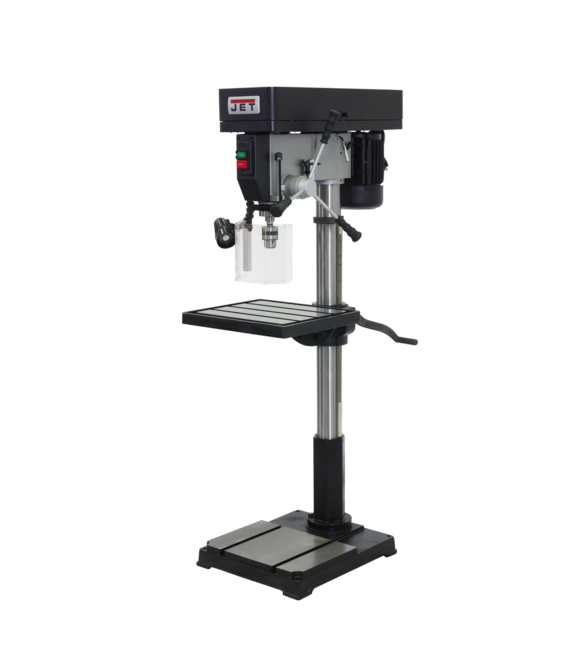

IDP-22, 22" Industrial Floor Model Drill Press

Features & Benefits

  • 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • Hinged metal belt and pulley cover
  • Large Hand Grips designed with the users comfort in mind
  • On/off switch located on front of the drill press head
  • Rotating, 45 tilting, crank-operated worktable with quick release clamp
  • Spindle is supported by high quality ball bearings
  • Table ground for accuracy
SAP EAN Number Code (UPC)731325466744
Model NumberIDP-22
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0055
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length35
SAP Unit of DimensionIN
SAP Height67
SAP Unit of DimensionIN
SAP Width19
SAP Unit of DimensionIN
SAP Gross Weight364
SAP Weight UnitLBS
SAP Net weight322
SAP Weight UnitLBS
SAP Transportation GroupLTL
Base Dimensions (In.)22-5/8 x 19-7/16 x 3-3/8
Base Work Table (In.)21-1/2 x 18-5/16
Chuck Size (In.)5/8
Column Diameter (In.)3-5/8
Distance Column to Spindle (In.)10-7/8
Drilling Capacity Cast Iron (In.)1-1/4
Drilling Capacity Mild Steel (In.)1
Drills to Center of Circle (In.)22.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Item Display Order14.0000
Motor (HP)1-1/2HP, 115/230V, 1Ph
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)35 x 19 x 67
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)175 - 3,050
Spindle Distance to Base (In.)48-1/2
Spindle Distance to Table (Max.) (In.)28
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-3
Spindle Travel (In.)4-13/16
Style (Type)Belt Drive
Table Size (L x W) (In.)18-5/8 x 16-1/8
T-Slots Number and Size (In.)2 and 5/8
T-Slot Centers (In.)3/4
Weight (Lbs.)364.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)176

Part #: 354301

Price: $2,599.00
