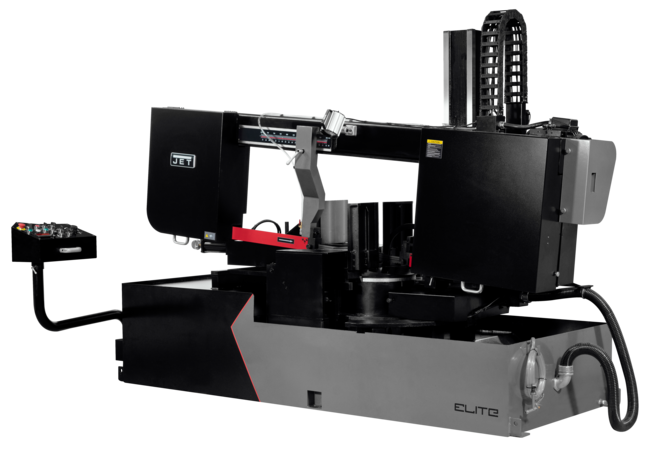

ECB-1833DMEVS 18" SEMIAUTO BANDSAW 460V

Horizontal Semi-Automatic

With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.

ECB-1833DMEVS-460, 18 x 31" Semi-Automatic Dual Mitering EVS Bandsaw 460V, 3Ph"

Electronic variable speed from 50-297 SFPM
Heavy duty construction reduces vibration and deflection
Hydraulic assist descent control
Auto table swivel
Blade tension gauge helps to ensure the blade is in the correct cutting position
Semi-auto on saw bow lifting and hydraulic vise
Swing away control box allows Operator to use in any position

SAP EAN Number Code (UPC)	731325868531
Model Number	ECB-1833DMEVS-460
SAP Base Unit of Measure	EA
SAP Commodity Code	8461.50.8090
SAP Country of Origin	Taiwan
Warranty	3 Year Elite
SAP Length	136
SAP Unit of Dimension	IN
SAP Height	91
SAP Unit of Dimension	IN
SAP Width	45
SAP Unit of Dimension	IN
SAP Gross Weight	5500
SAP Weight Unit	LBS
SAP Net weight	5060
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
Accessories Products	414125,414126,414127,891172,891173
Blade Size (In.)	1.61 x 0.051 x 240
Bed Height (In.)	33-15/32
Blade Speeds (SFPM)	50 - 300
Blade Wheel Diameter (In.)	22-53/64
Coolant Pump Motor	1/8HP, 460V, 3PH
Electrics	7-1/2HP, 460V, 3Ph
Gross Weight (Lbs)	5500.0000
Gross Weight (Lbs) (Unit)	Pound
Item Display Order	15.0000
Net Weight (Lbs.)	5060.0000
Net Weight (Lbs.) (Unit)	Pound
Overall Dimensions (L x W x H) (In.)	110 x 75 x 83
Prewired Voltage (V.)	460
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	18 x 20-13/16
Rectangle at 60 Degrees (In.)	18 x 14-29/32
Rectangle at 90 Degrees (In.)	18 x 31-1/2
Round at 45 Degrees (In.)	18
Round at 60 Degrees (In.)	18
Round at 90 Degrees (In.)	15
Square at 45 Degrees (In.)	18 x 18
Square at 60 Degrees (In.)	15 x 15
Square at 90 Degrees (In.)	18 x 18
Throat Depth (In.)	18
Mitering Angle Motor	1/5HP, 460V, 3Ph
Oil Pump Motor	1HP, 460V, 3Ph

Part #: 891175

Price: $53,959.00

Quantity:
