JTM-1050EVS2 W 3X MILLPWR G2 & APDB

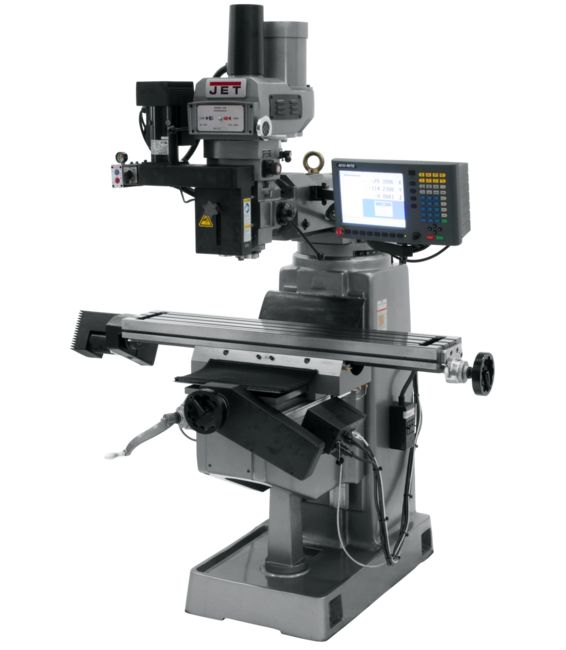

JTM-1050EVS2/230 Mill With 3-Axis Acu-Rite MilPwr G2 CNC Controller with Air Powered Drawbar

Features & Benefits

  • CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS
  • Features of the ACU-RITE MILLPWR G2 CNC Package
  • Precision Ground Ball Screws eliminate backlash for precice lateral movements
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Handwheels are included for manual operation
  • Features of the ACU-RITE MILLPWR G2 CONTROLLER
  • USB + Ethernet compatible
  • Simplified navigation that eliminates multiple menu screens
  • 12.1" High resolution display (1024 x 768) with 3D graphics
UPC731325482102
SAP Material GroupMW28
SAP Material TypeZFIN
SAP Warranty2 Year
Model NumberJTM-1050EVS2/230
SAP OwnerJMW
SAP Division1
SAP Country of OriginTW
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height0.000
SAP Length0.000
SAP Volume0.000
SAP Width0.000
Prop 65Cancer and Reproductive Harm
Quill Down Feed Rates (IPR).0015 - .003 - .006
Travel of Knee (In.)16-1/8
Head Movement (Deg.)
Motor (HP)3 HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.)66 x 63 x 87
Spindle Travel (In.)5
Style (Type)CNC
Spindle Taper (In. x TPI)R-8
Work Table Weight Capacity (Lbs.)840
CNC Package
Table Longitudinal Travel (In.)35-1/3
Table Size (L x W) (In.)10 x 50
Weight (Lbs.)2,860
T-Slots Number and Size (In.)3 and 5/8
Table Cross Travel (In.)14-3/4
Power Draw BarPneumatic
Number of Spindle SpeedsVariable
T-Slot Centers (In.)2-1/2
Range of Spindle Speeds (RPM)60 - 4,500
Travel of Ram (In.)15-7/8
Distance Spindle to Column (Max.) (In.)26-3/4
Distance Spindle to Column (Min.) (In.)4-3/4
Quill Diameter (In.)3-3/8
Number of Axis3
Collet Capacity1/8 - 7/8
Max Distance Spindle to Table (In.)20-3/4
Column Width (In.)20
Saddle Width (In.)11-1/2
Inverter TypeDelta, B
Table Longitudinal Travel With Powerfeed (In.)29-7/8

Part #: 690684

Price: $40,499.00
