JTM-1254VS 3-X ACU-RITE G-2 MILPWR CNC

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

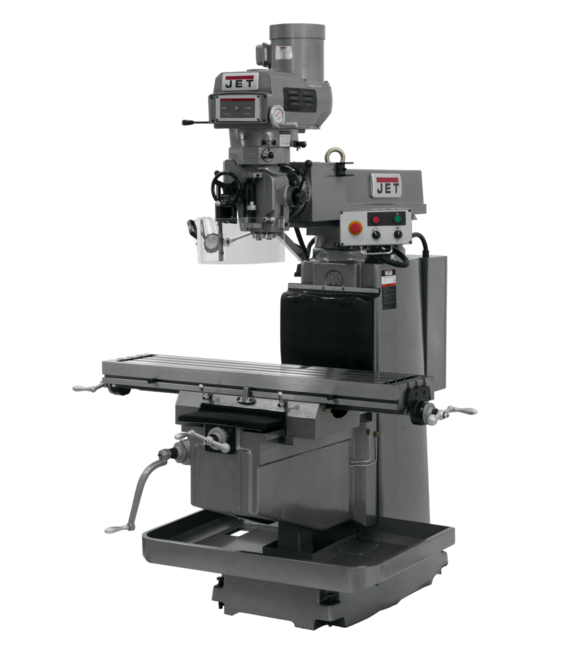

JTM-1254VS with 3-Axis ACU-RITE G-2 MILLPOWER CNC

Features & Benefits

  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
  • Adjustable gibs throughout
  • Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
  • Available offline software
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Three Precision ground t-slots
  • Two 115V outlets on electrical box for Powerfeeds only
  • USB + Ethernet compatible
SAP EAN Number Code (UPC)731325524932
Model NumberJTM-1254VS CNC G2
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length92.125
SAP Unit of DimensionIN
SAP Height104.25
SAP Unit of DimensionIN
SAP Width79.875
SAP Unit of DimensionIN
SAP Gross Weight3696
SAP Weight UnitLBS
SAP Net weight3260
SAP Weight UnitLBS
SAP Transportation GroupLTL
BOM Products690025,cnc210503
30 Point inspectionJET 30 Point
Column Width (In.)14-1/4
Distance Spindle to Column (Max.) (In.)27-3/4
End User SellableNo
Item Display Order21.0000
Max Distance Spindle to Table (In.)23
Motor (HP)5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)104-1/4 x 79-7/8 x 92-1/8
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)4-1/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)80 - 3,800
Saddle Width (In.)25-5/8
Spindle Taper (In. x TPI) (English United States, Ecommerce)NST #40
Spindle Travel (In.)5
Style (Type)CNC
Table Cross Travel (In.)15-1/3
Table Longitudinal Travel (In.)33-7/8
Table Size (L x W) (In.)12 x 54
Travel of Knee (In.)19-1/4
Travel of Ram (In.)25
T-Slot Centers (In.)2-1/2
Weight (Lbs.)3696.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)925

Part #: 691941

Price: $51,999.00
