JTM-4VS Mill 3-Axis ACU-RITE G-2 MILPWR

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

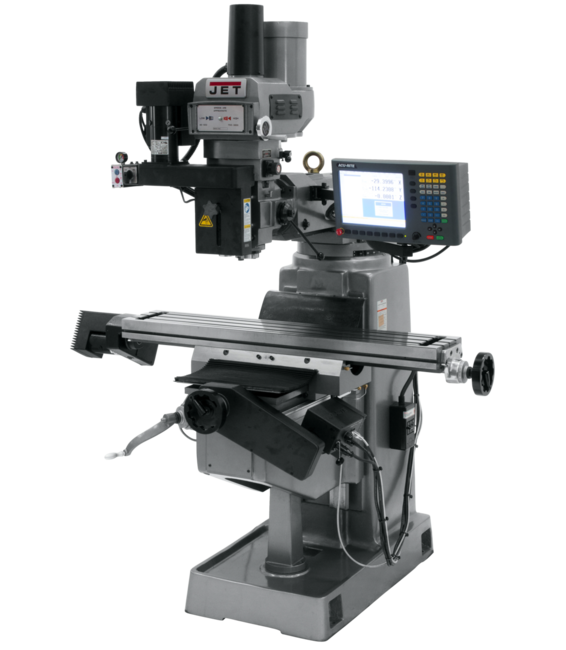

JTM-4VS Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC

Features & Benefits

  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • Available offline software
  • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Precision ground ball screws eliminate backlash for precise lateral movements
  • USB + Ethernet compatible
SAP EAN Number Code (UPC)731325335170
Model NumberJTM-4VS CNC G2
SAP Base Unit of MeasureEA
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Gross Weight2600
SAP Weight UnitLBS
SAP Net weight2600
SAP Weight UnitLBS
SAP Transportation GroupLTL
BOM Products690182,CNC29493
30 Point inspectionJET 30 Point
CNC PackageACU-RITE MILLPWR® G2
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)19
End User SellableNo
Item Display Order17.0000
Max Distance Spindle to Table (In.)17-1/2
Motor (HP)3 HP, 230/460V, 3Ph
Number of Axis3
Overall Dimensions (L x W x H) (In.)66 x 63 x 85
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)60 - 4,200
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)CNC
Table Cross Travel (In.)12
Table Longitudinal Travel (In.)34
Table Size (L x W) (In.)9 x 49
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2420.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)660

Part #: 690948

Price: $44,999.00
