GH-1440-1  LATHE  WITH 203 DRO & COLLET
GH-1440-1  LATHE  WITH 203 DRO & COLLETGH-1440-1  LATHE  WITH 203 DRO & COLLETGH-1440-1  LATHE  WITH 203 DRO & COLLET
GH-1440-1  LATHE  WITH 203 DRO & COLLETGH-1440-1  LATHE  WITH 203 DRO & COLLETGH-1440-1  LATHE  WITH 203 DRO & COLLET

The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.

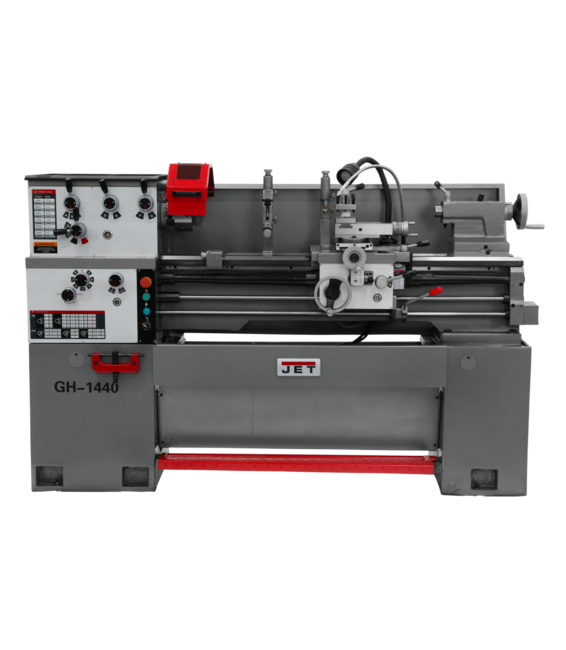

GH-1440-1 Lathe with Acu-Rite 203 DRO and Collet Closer

Features & Benefits

  • Compound and cross slide have backlash elimination
  • Front Removable Chip Tray
  • Full Length Splash Guard
  • Inch-metric dials are standard
  • Independent lead screw and feed rod
  • Safety on/off switch
  • Spindle actuation control is apron mounted
  • Spindle jog button for easy gear engagement and spindle inching
  • Splined, not keyed, shafts are utilized
  • Tailstock may be offset for turning taper
SAP EAN Number Code (UPC)731325733594
Model NumberGH-1440-1
SAP Base Unit of MeasureEA
SAP Commodity Code8458.19.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length74.8
SAP Unit of DimensionIN
SAP Height56.5
SAP Unit of DimensionIN
SAP Width30
SAP Unit of DimensionIN
SAP Gross Weight2336
SAP Weight UnitLBS
SAP Net weight2116
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products321431,321520,650014,650016,650295,650300,650305,660200
BOM Products321519,322830,T203W-0840J
Carriage Travel (In.)37-1/2
Compound Slide Travel (In.)3-1/2
End User SellableNo
Item Display Order122.0000
Length of Gap (In.)9-3/8
Max Tool Size (In.)5/8 x 5/8
Motor (HP)3HP, 230V, 1PH
Number of Inch Threads40.0000
Number of Longitudinal and Cross Feed Rates40
Number of Metric Threads23.0000
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)74-4/5 x 28 x 46
Package NameGH-1440-1 Lathe with Acu-Rite 203 DRO and Collet Closer
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR)0.0004 - 0.0103
Range of Inch Threads (TPI)4-112
Range of Longitudinal Feeds (IPR)0.0012 - 0.0294
Range of Metric Threads0.45-7.5
Range of Spindle Speeds (RPM)40-1800
Spindle Bore (In.)1-1/2
Spindle Mount (English United States, Ecommerce)D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5
Steady Rest Capacity (In.)3-1/2
Swing Over Bed (In.)14
Swing Over Cross Slide (In.)8-1/5
Swing Through Gap (In.)20
Tailstock Spindle Travel (In.)4-3/4
Taper in Tailstock SpindleMT-3
Weight (Lbs.)2336.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)10-1/5

Part #: 323376

Price: $22,599.00
