PM2013B-3 BANDSAW 5HP, 3PH, 230/460V
PM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460V
PM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460V
PM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460V
PM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460VPM2013B-3 BANDSAW 5HP, 3PH, 230/460V
PM2013B-3 BANDSAW 5HP, 3PH, 230/460V

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.

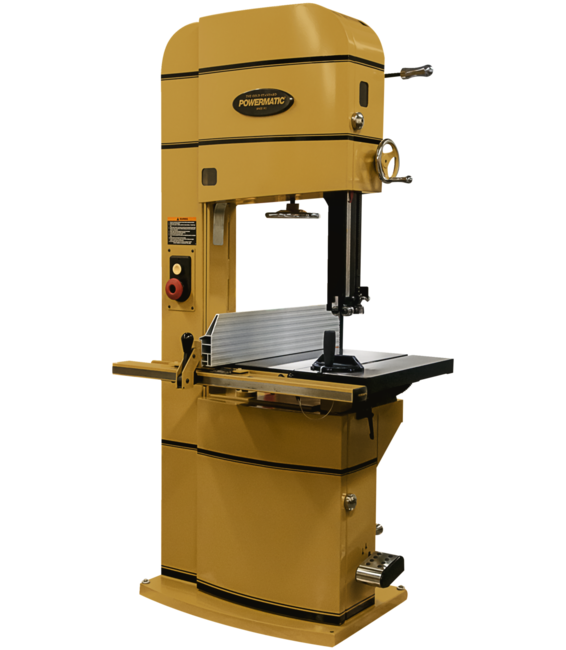

PM2013B-3, 20" Bandsaw, 5HP 3PH 230/460V

Features & Benefits

  • Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
  • Exclusive Powermatic T-square style Accu-Fence maximizes accuracy and safety
  • Heavy duty upper wheel support and tracking mechanism for smooth operation
  • High end blade guides with tool less adjustment provide stability, increasing cut accuracy
  • Rack and pinion table tilt system allows for easy and accurate adjustments
  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table
SAP EAN Number Code (UPC)731325353594
Model NumberPM2013B-3
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0068
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length40
SAP Unit of DimensionIN
SAP Height87.5
SAP Unit of DimensionIN
SAP Width33.25
SAP Unit of DimensionIN
SAP Gross Weight953
SAP Weight UnitLBS
SAP Net weight854
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products708119,PM1800B-043C
Blade Length (In.)170
Cutting Capacity Height (In.)18.0000
Cutting Capacity Height (In.) (Unit)Inch
Cutting Capacity Width (In.)20.0000
Dust Collection Minimum CFM Required (CFM)600
Dust Port Outside Diameter (In.)4
End User SellableNo
Item Display Order6.0000
Motor Phase3
Motor Power (HP)5
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Style (Type)Floor
Suggested Products1791216K,1791257B,1791259B,1791260B,1791500,1791800B,1791801B

Part #: 1791258B

Price: $7,299.99
