100T IW 230V,1PH, PWRLNK, 10IN BRAKE

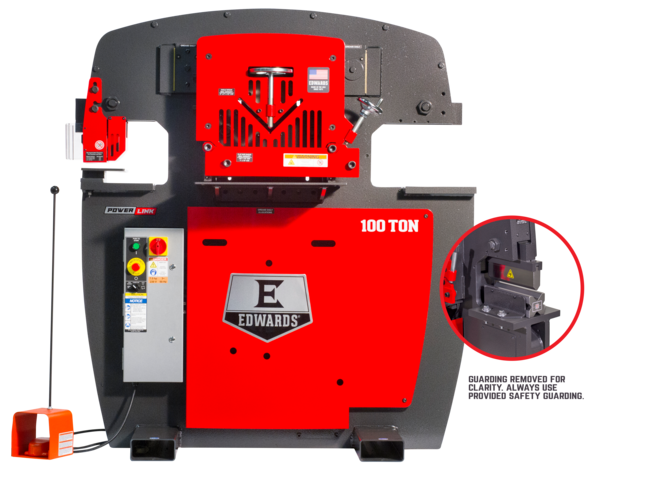

100 Ton Ironworker with PowerLink System

<< Back

100T IW 230V,1PH, PWRLNK, 10IN BRAKE
100T IW 230V,1PH, PWRLNK, 10IN BRAKE100T IW 230V,1PH, PWRLNK, 10IN BRAKE100T IW 230V,1PH, PWRLNK, 10IN BRAKE

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed 10" brake. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90 angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.

100 Ton Ironworker 208V, 3Ph, PowerLink, Coper Notcher & 2 LED Lights

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
SAP EAN Number Code (UPC)731325864199
Model Number10231522
SAP Country of OriginUSA
Warranty1 Year
SAP Length46
SAP Height67
SAP Width69
SAP Gross Weight4704
SAP Net weight4704
End User SellableNo
Flat Bar Shear Max Capacity 1"14
Flat Bar Shear Max Round (In)1-1/4
Flat Bar Shear Max Square (In)1-1/4
Flat Bar Shear Work Height (In.)37
Hydraulic Pump (GPM)10-1/2
Item Display Order8.0000
Motor Amps22
Motor (HP)7.5 HP 3 ~ 208V
Motor Speed (RPM)1765
Prop 65None
Punch Max Capacity (In.)1-1/16 dia in 1" A36"
Punch Open Height (In)8-3/4
Punch Shut Height (In)6-15/16
Punch Stroke (In.)1-13/16
Punch Throat Depth (In.)11
Punch Work Height (In.)39-1/16
Rating (Tons)100.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)17
Valve Pressure (PSI)3500.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)4650.0000
Weight (Lbs.) (Unit)Pound

Part #: 10231522

Price: $36,179.00
Quantity:
