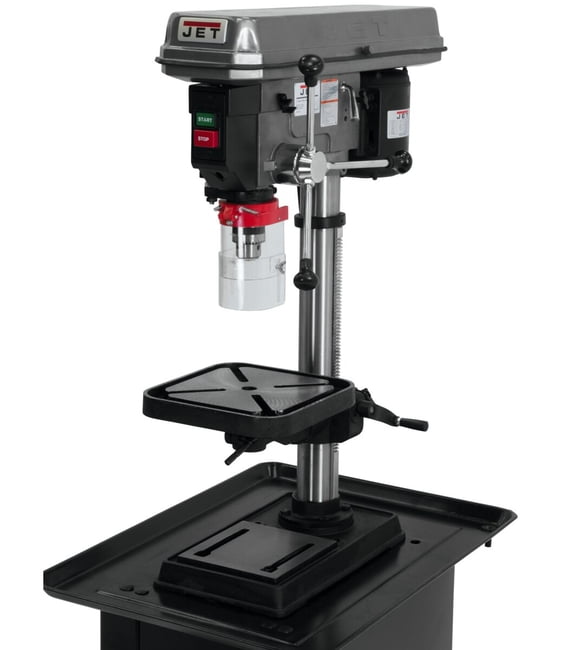

J-2530 15" BENCH DRILL PRESS 115/230V

J-2530, 15" Bench Model Drill Press 115V 1Ph

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Features & Benefits

  • Constructed to provide a solid base for drilling
  • The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
  • Cast Iron head
  • Large ground steel column for maximum head and table support
  • Large quill allows greater accuracy
  • 3-1/8" stroke for deep hole applications
  • Accurate depth stop for precice hole depths
  • 5/8" drill chuck and arbor
  • Telescoping safety spindle guard
UPC662756092656
SAP Material GroupMW105
SAP Material TypeZFIN
SAP Warranty2 Year
Model NumberJ-2530
SAP DChain Status4
SAP OwnerJMW
SAP Country of OriginCN
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height12.000
SAP Length32.000
SAP Volume5.000
SAP Width22.500
Prop 65Cancer and Reproductive Harm
Table Travel (In.)15-1/2
Table Size (L x W) (In.)11-1/2 x 11-1/2
Column Diameter (In.)2-7/8
Spindle Distance to Table (Max.) (In.)15
Base Dimensions (In.)18 x 10-1/2
Drilling Capacity Mild Steel (In.)1/2
Spindle Travel (In.)3-3/8
Base Work Table (In.)8 x 8
Weight (Lbs.)157
Distance Column to Spindle (In.)7-1/2
Drills to Center of Circle (in)15
Work Table Weight Capacity (Lbs.)44
Range of Spindle Speeds (RPM)200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
Spindle Distance to Base (In.)24
T-Slot Centers (In.)-
Motor (HP)3/4 HP, 115/230V, 1Ph
Base Slots Number & Size (In.)-
Drilling Capacity Cast Iron (In.)5/8
Number of Spindle Speeds16
Overall Dimensions (L x W x H) (In.)31 x 13 x 39-1/2
Spindle Taper (In. x TPI)MT-2
Style (Type)Belt Drive
T-Slots Number and Size (In.)-

Part #: 354401

Price: $699.00
